Ultrasound transmission gel is a multipurpose gel with excellent conductive properties specially formulated to provide clear and consistence ultrasound transmission throughout a broad range of frequencies, the ideal choice for all medical ultrasound procedures where a gel is preferred.
It is applicable to the clinical pathologic inspect for the department of obstetrics and gynecology, digestion, urinary and nervous systems.
Color:Clear and Blue

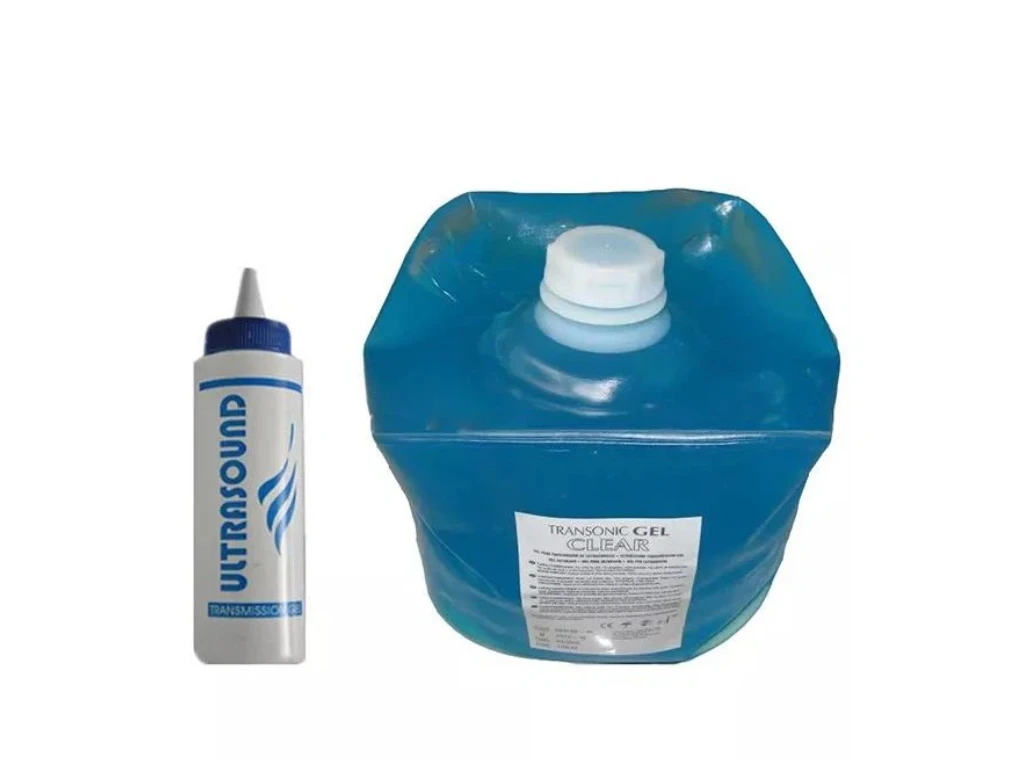

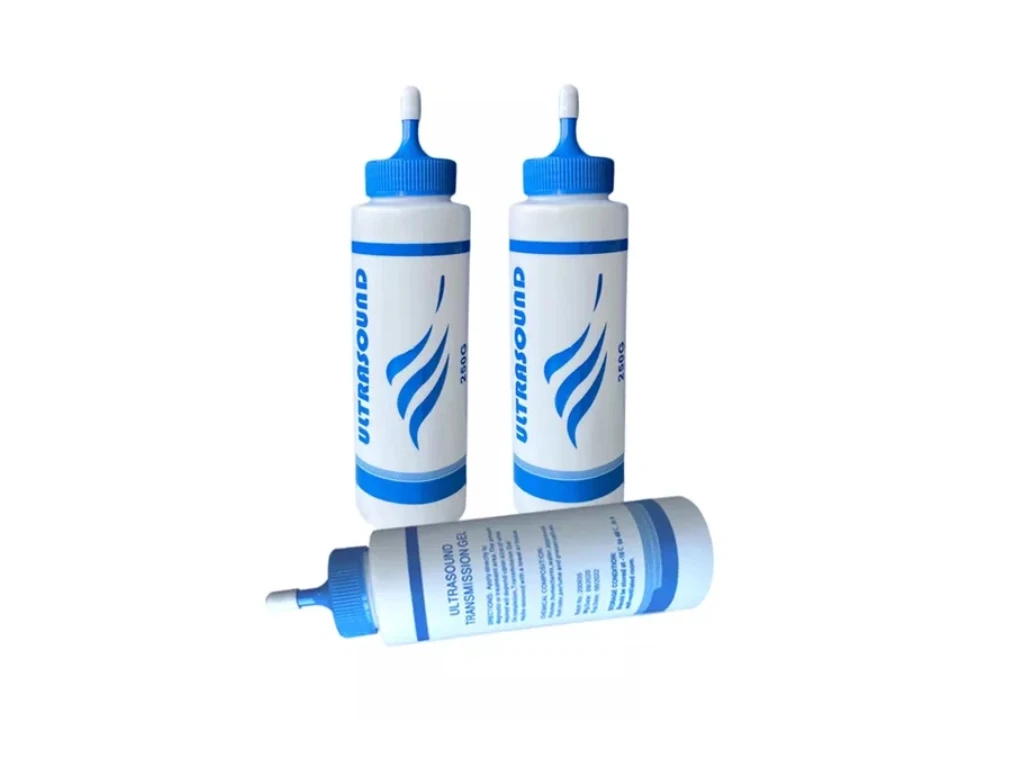

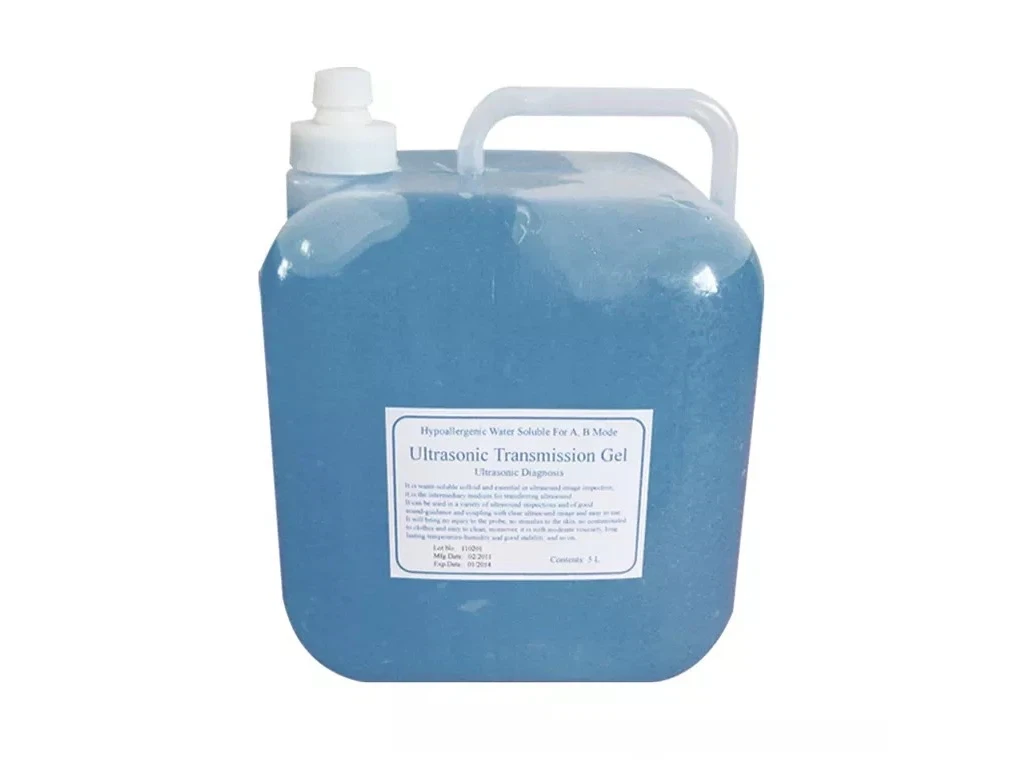

Specification:250ML, 1L, 2.5L, 5L
Logo Printing: With or Without Logo Printing
| Performance Indicators | |
| Speed of sound (35ºC) | 1520~1620 m/s |
| Acoustic impedance (35ºC) | 1.5~1.7×106Pa-s/m |
| Sound attenuation (35ºC) | ≤0.05 dB/(cm-Mhz) |
| Viscosity (25ºC) | ≥15 Pa-s |
| PH value | 5.5~8.0 |
TheraSonic Conductive Gel Features
- Ultrasound Gel is water soluble. Non-greasy and will not irritate tissues or injure the ulasound applicator or electrodes. It spreads easily and evenly and is an efficient coupling medium for ultrasound transmission.
- Better sound transmission, distinctive image display, no toxic and irritant effect, no damage and corrosion to the ultrasound probe.
- Chemical Composition: Polymer, humectants, water, approved food color, perfume and preservatives.
